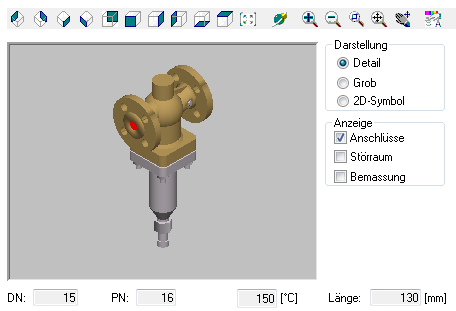

En post i henhold til VDI 3805 er et elektronisk produktkatalog til udveksling af data inden for bygningsinstallationer (mekanik, el, VVS). Den leverer data til tegning, dimensionering og udbud. Dataene kan bruges i både planlægning og vedligeholdelse. CAD-filerne (2D og 3D) kan eksporteres i DXF-format. Salgsdataene er også tilgængelige som GAEB (DA81).
Software downloads
Device types contained in the SAMSON VDI record
- Type 3213 Globe Valve
- Type 3214 Globe Valve
- Type 3222 and Type 3222 N Globe Valves
- Type 3226 Three-way Valve
- Type 3260 Three-way and Globe Valve
- Type 3241 Globe Valve
- Type 3244 Three-way Valve
- Series V2001 Globe Valve
- Series V2001 Three-way Valve
- TROVIS 5724 Electric Actuator with Process Controller
- TROVIS 5725 Electric Actuator with Process Controller with fail-safe action
- TROVIS 5757 Electric Actuator with Process Controller
- Type 5824 Electric Actuator
- Type 5825 Electric Actuator with fail-safe action
- Type 5857 Electric Actuator
- Type 3274 Electrohydraulic Actuator
- Type 3374 Electric Actuator
- Type 2488 and Type 2488 N Flow Regulator with electric actuator (PICV)
- Type 42-24 Differential Pressure Regulator
- Type 42-34 Differential Pressure and Flow Limiter
- Type 42-36 E Combined Self-operated Flow Regulator with additional electric actuator (PICV)
- Type 42-37 Flow and Differential Pressure Regulator
- Type 42-39 Flow and (Differential) Pressure Regulator
- Type 45-4 Differential Pressure Regulator
- Type 46-5 Differential Pressure and Flow Limiter
- Type 46-6 Differential Pressure and Flow Limiter
- Type 46-7 Flow and Differential Pressure Regulator
- TROVIS 5724 Electric Actuator with Process Controller
- TROVIS 5725 Electric Actuator with Process Controller with fail-safe action
- TROVIS 5757 Electric Actuator with Process Controller
